Triconex 3708E 8-Channel Thermocouple Input Module with 16-bit Resolution and Modbus RTU Communication
| Tempat asal | Amerika |
|---|---|
| Nama merek | TRICONEX |
| Nomor model | 3708e |
| Kuantitas min Order | 1 |
| Harga | $5000 |
| Waktu pengiriman | 5-7 hari |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 999 |
Detail produk
| ID Produk | Modul Input Analog Termokopel Triconex 3708E | Merek | Triconex |
|---|---|---|---|
| Seri | 3708e | Nomor Model | 3708e |
| Jaminan | 1 Tahun | Fungsi | Bagus |
| Kondisi | Baru | ||
| Menyoroti | 8-Channel Thermocouple Input Module,16-bit Resolution Analog Input Module,Modbus RTU Communication PLC Module |
||
Deskripsi Produk
Triconex 3708E Thermocouple Analog Input Module
The Triconex 3708E is a high-performance thermocouple input module designed for accurate temperature measurement in demanding industrial environments. It supports various thermocouple types, offers a wide operating temperature range (-40°C to +85°C), and provides both 4-20 mA and 0-10 V signal outputs for flexible integration. With a Modbus RTU communication interface, relay output for device control, and IP67‑rated rugged enclosure, the module ensures reliable operation in dusty or wet conditions. Designed for easy installation and maintenance, the 3708E is a dependable solution for temperature monitoring and control in industrial automation systems.
Technical Specifications
| Module Type | 8-Channel Analog Input Module |
| Resolution | 16-bit + sign |
| Processor Type | Motorola MPC860, 32-bit, 50 MHz |
| Operating Temperature | -40°C to 70°C |
| Dimensions | 178mm x 48mm x 203mm |

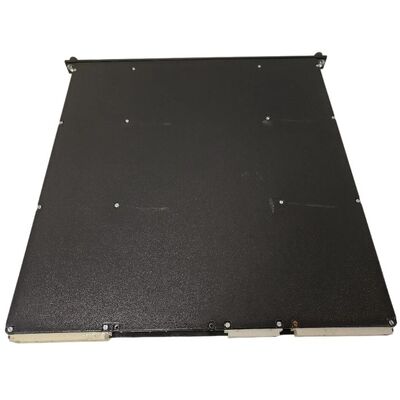

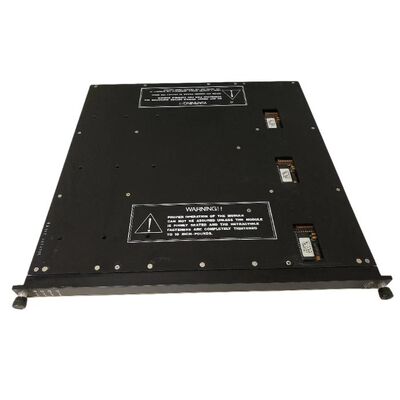

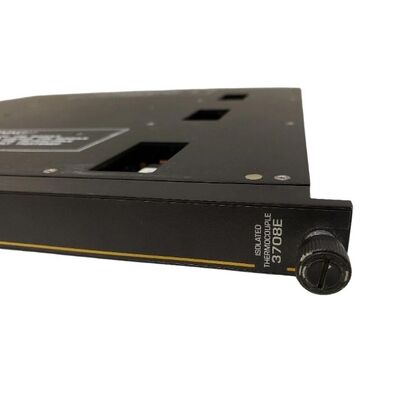

Product Images
Installation Requirements
Professional installation is essential to ensure optimal performance, operational safety, and compliance with industry standards. Proper implementation is critical for reliable system integration and long-term operational efficiency.
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
