GE IS220PPRFH1A PROFIBUS Master Gateway Pack for Mark VIe
| Tempat asal | Amerika Serikat |
|---|---|
| Nama merek | GE |
| Sertifikasi | COO |
| Nomor model | IS220PPRFH1A |
| Kuantitas min Order | 1 |
| Harga | $9000 |
| Waktu pengiriman | 5-7 hari |
| Syarat-syarat pembayaran | T/t |
| Menyediakan kemampuan | 999 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| nama | GE IS220PPRFH1A Paket Gateway Master Profibus | ID Produk | IS220PPRFH1A |
|---|---|---|---|
| Seri | Mark VI | Tinggi Net Produk | 200mm |
| Lebar Net Produk | 100mm | Kedalaman/panjang bersih produk | 330mm |
| Bobot bersih produk | 2kg | Jaminan | 1 tahun |
| Menyoroti | GE Mark VIe PROFIBUS gateway,PROFIBUS Master Gateway Pack,GE turbine control gateway |
||
Deskripsi Produk
GE IS220PPRFH1A PROFIBUS MASTER GATEWAY PACK
| Attribute | Value |
|---|---|
| Name | GE IS220PPRFH1A PROFIBUS MASTER GATEWAY PACK |
| Product ID | IS220PPRFH1A |
| Series | Mark VI |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Depth/Length | 330mm |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
Product Details
The GE IS220PPRFH1A is a PROFIBUS Master Gateway Pack part of the Mark VIe Series, compatible with Mark VI, Mark VIe, and Mark VIeS systems. As a PROFIBUS DPV0 Class 1 master, it bridges PROFIBUS slave devices and Mark VIe Ethernet controllers, mapping I/O data via a Hilscher COM-C module. Part of the HazLoc subseries, it is certified for hazardous and non-hazardous locations, making it suitable for gas, steam, and wind turbine control in harsh industrial environments.
Key Features
- PROFIBUS Functionality: Acts as a DP master with transmission rates from 9.6 KBaud to 12 MBaud, supporting up to 125 slaves via a DE-9 D-sub RS-485 interface.
- Redundancy Options: Supports simplex, dual Ethernet on a single pack, or hot-backup with automatic failover from active to standby master.

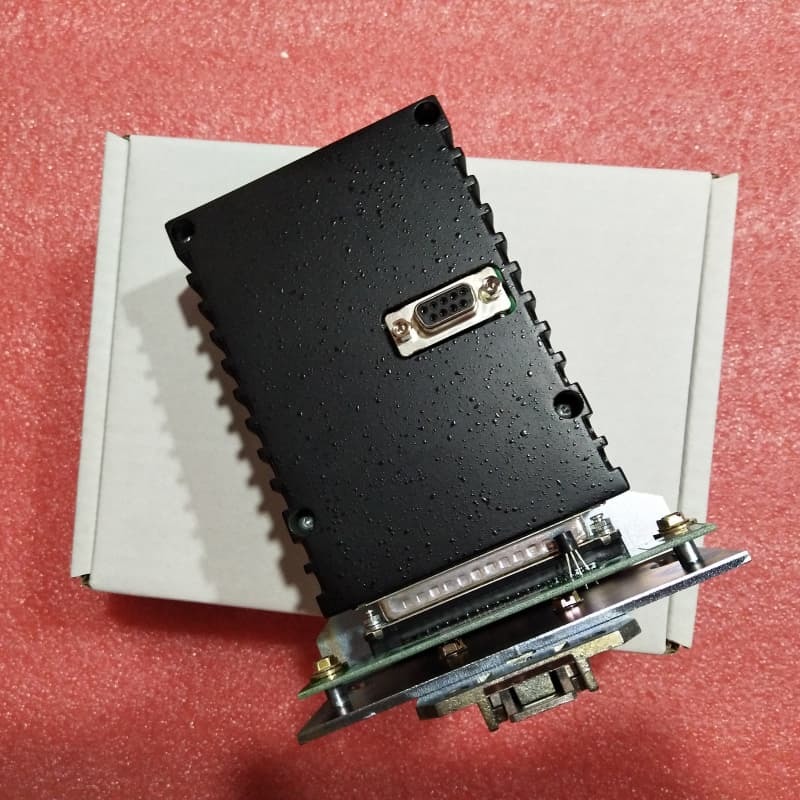

- Installation & Connectivity: Mounts on SPIDG1A terminal boards with secure mechanical fastening; uses dual Ethernet ports and a 3-pin power input with soft-start current limiting. PROFIBUS cables connect to the DE-9 port, requiring proper termination.
- Hardware & Certification: Operates at 27.4-28.6 VDC with max 0.18 ADC current; temperature range -20 to 55°C. Certified for hazardous locations and non-hazardous areas.

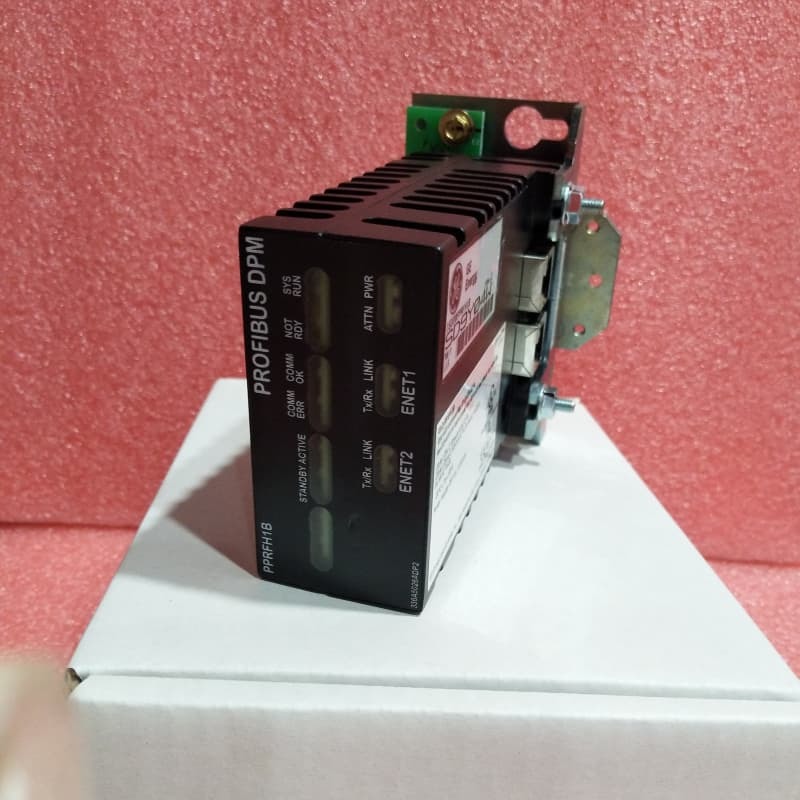

- Configuration: Configurable via ToolboxST software; integrates a shared Mark VIe processor board and acquisition carrier board for seamless communication and diagnostics via LED indicators.
