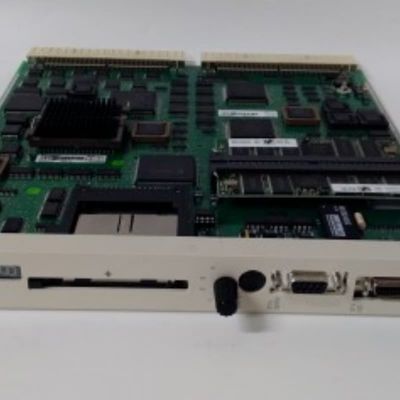

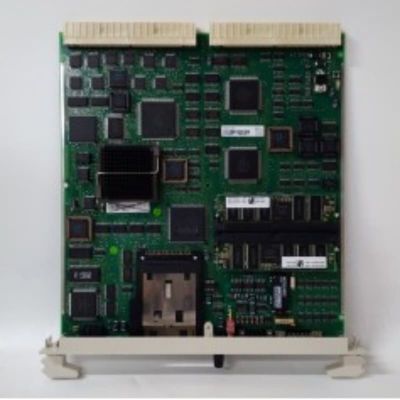

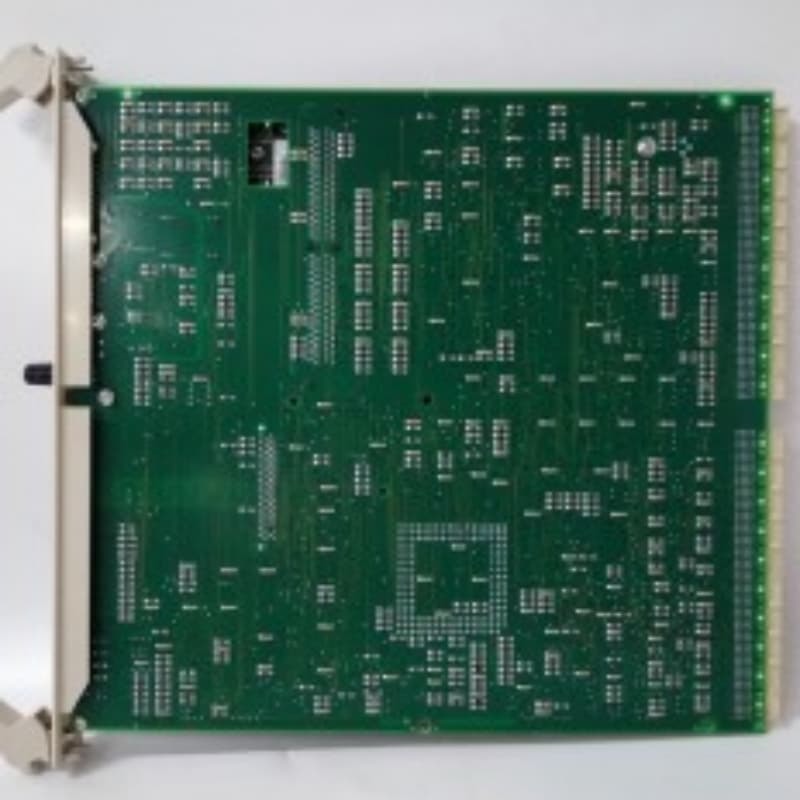

GE IS215VAMBH1A Acoustic Monitoring Board for Mark VI Turbine
| Place of Origin | US |
|---|---|
| Nama merek | GE |
| Model Number | IS215VAMBH1A |
| Minimum Order Quantity | 1pc |
| Harga | $5000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Name | GE IS215VAMBH1A Acoustic Monitoring Board | Product ID | IS215VAMBH1A |
|---|---|---|---|
| Series | Mark VI | Function | Discrete Output pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Menyoroti | GE Mark VI turbine acoustic board,turbine control monitoring board,GE IS215VAMBH1A acoustic sensor |
||
Deskripsi Produk
GE IS215VAMBH1A Acoustic Monitoring Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS215VAMBH1A Acoustic Monitoring Board |
| Product ID | IS215VAMBH1A |
| Series | Mark VI |
| Function | Discrete Output pack |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS215VAMBH1A is an Acoustic Monitoring Card Assembly, a key component in GE's Mark VI turbine control series, designed to enable precise acoustic monitoring for Frame 6, 7, and 9 gas turbines.
This advanced monitoring solution integrates two TAMB boards, delivering 18 channels of signal conditioning and acoustic monitoring. It works with one or two TAMB terminal boards to capture and process acoustic signals critical for turbine health assessment.
Key Features
- 18-Channel Monitoring: Provides comprehensive signal conditioning and acoustic monitoring for turbine health diagnostics.
- Advanced Signal Processing: High-impedance DC bias detects open connections with configurable bias options and buffered BNC outputs for clean signal transmission.
- Auto-Calibration: A/D compensation eliminates gain/offset errors through auto-calibration against a precision voltage reference.
- Flexible Gain Options: Four gain settings amplify low-level signals with firmware-adjusted net gain consistency.
- Diagnostic Indicators: Three status LEDs (RUN, FAIL, and diagnostic alarms) with configurable system limits for proactive fault detection.
- System Integration: Compatible with TAMB terminal boards and Mark VI Toolbox for configuration, supporting offline/online diagnostics with 40 ms frame rate updates.
- Robust Construction: Features Xilinx FPGAs, inductor coils, and nine 3-pin jumpers in a durable industrial design with backplane connectors for reliable operation in turbine environments.
